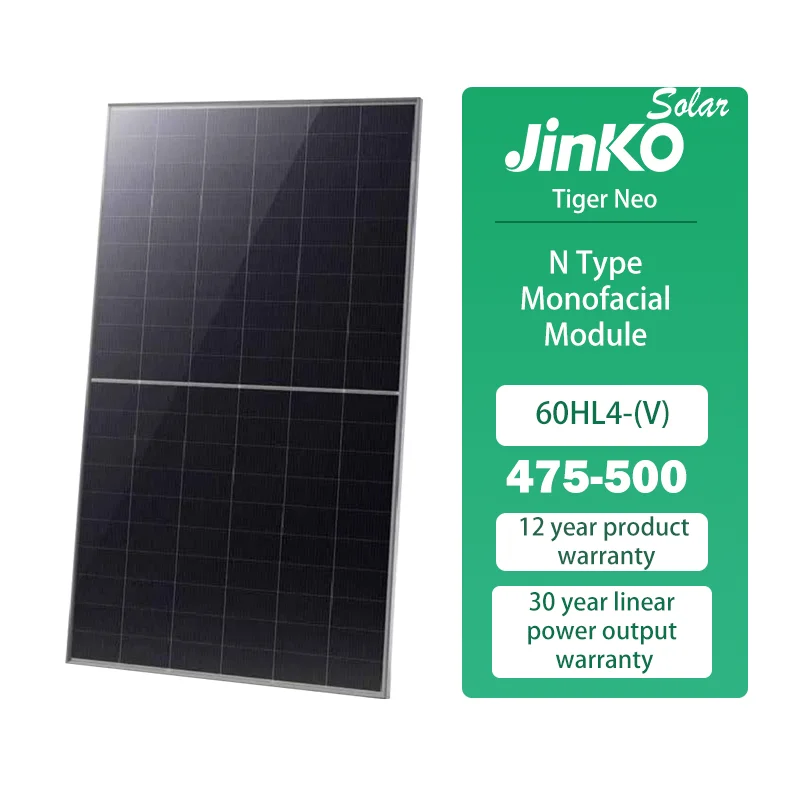

Jinko Tiger Neo 60HL4-(V)
مدل NO:60HL4-(V) 475-500 وات
نوع سلول: تک کریستالی نوع N
وزن: 22.5 کیلوگرم
بسته حمل و نقل: بسته بندی پالت چوبی و کارتن
مشخصات: 1903 * 1134 * 30 میلی متر
علامت تجاری: جینکو سولار
مبدا: چین
| MECHANICAL DATA | |
|---|---|
| Cell Type | N-type Mono-crystalline |
| No. of Cells | 120(6*20) |
| Dimensions | 1903*1134*30 mm |
| Weight | 22.5 kg |
| Front Glass | 3.2mm, Anti-Reflection Coating,High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized aluminium alloy |
| J-Box | IP68 rated |
| Fire Rating | Class C |
| Output Cables | TUV 1*4mm(+): 400 mm, (-): 200 mm or Customized Length |
| ELECTRICAL DATE(STC) | ||||||
|---|---|---|---|---|---|---|
| Nominal Max. Power (Pmax) | 475w | 480w | 485w | 490w | 495w | 500w |
| Power Tolerance | 0- +3% | |||||
| Opt. Operating Voltage (Vmp) | 35.88 | 36.06 | 36.25 | 36.43 | 36.62 | 36.79 |
| Opt. Operating Current (Imp) | 13.24 | 13.31 | 13.38 | 13.45 | 13.52 | 13.59 |
| Open Circuit Voltage (Voc) | 43.45 | 43.6 | 43.76 | 43.91 | 44.07 | 44.21 |
| Short Circuit Current (Isc) | 13.77 | 13.85 | 13.93 | 14.01 | 14.09 | 14.17 |
| Module Efficiency | 21.98% | 22.21% | 22.44% | 22.67% | 22.90% | 23.17% |
