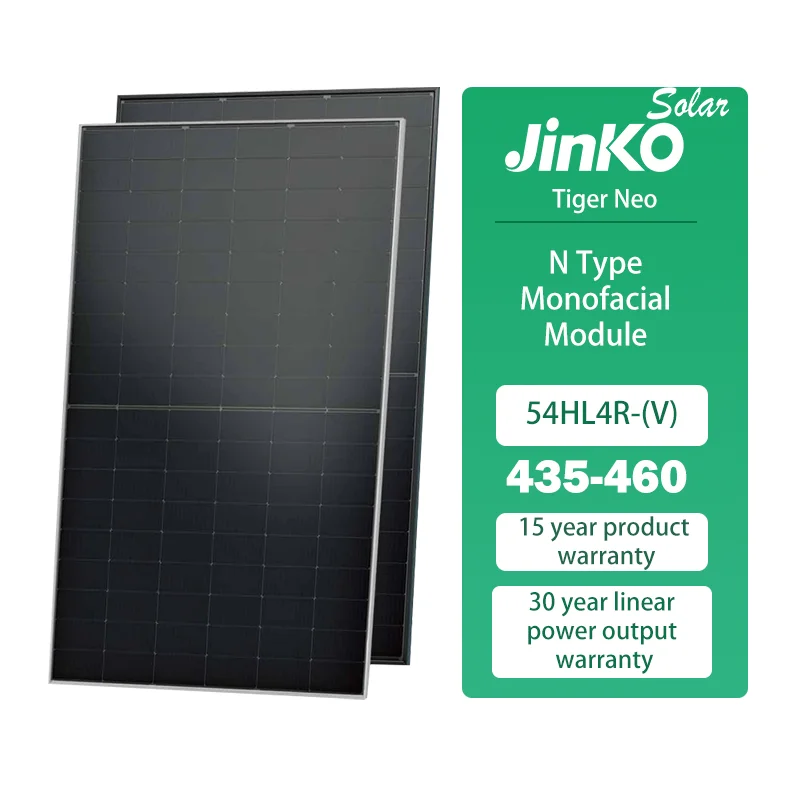

Jinko Tiger Neo 54HL4R-(V)
مدل NO:54HL4R-(V) 435-460 وات
نوع سلول: تک کریستالی نوع N
وزن: 21.0 کیلوگرم
بسته حمل و نقل: بسته بندی پالت چوبی و کارتن
مشخصات: 1762 * 1134 * 30 میلی متر
علامت تجاری: جینکو سولار
مبدا: چین
| MECHANICAL DATA | |
|---|---|
| Cell Type | N-type Mono-crystalline |
| No. of Cells | 108(2*54) |
| Dimensions | 1762*1134*30 mm |
| Weight | 21.0 kg |
| Front Glass | 3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized aluminium alloy |
| J-Box | IP68 rated |
| Protection Class | Class II |
| lEC Fire Type | Class C |
| Output Cables | 4.0 mm²(+): 400 mm, (-): 200 mm or Customized Length |
| ELECTRICAL DATE(STC) | ||||||
|---|---|---|---|---|---|---|
| Nominal Max. Power (Pmax) | 435w | 440w | 445w | 450w | 455w | 460w |
| Power Tolerance | 0- +3% | |||||
| Opt. Operating Voltage (Vmp) | 32.59 | 32.81 | 33.02 | 33.21 | 33.41 | 33.6 |
| Opt. Operating Current (Imp) | 13.35 | 13.41 | 13.48 | 13.55 | 13.62 | 13.69 |
| Open Circuit Voltage (Voc) | 39.16 | 39.38 | 39.59 | 39.78 | 39.98 | 40.17 |
| Short Circuit Current (Isc) | 13.8 | 13.86 | 13.93 | 14 | 14.07 | 14.14 |
| Module Efficiency | 21.77% | 22.02% | 22.27% | 22.52% | 22.77% | 23.02% |
