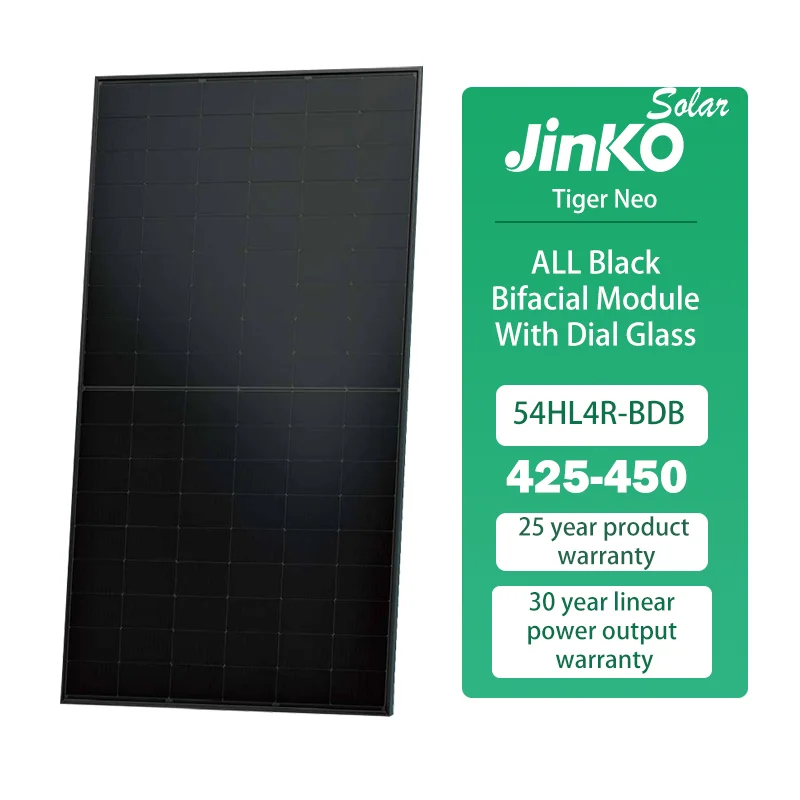

Jinko Tiger Neo 54HL4R-BDB
مدل NO:54HL4R-BDB 425-450 وات
نوع سلول: تک کریستالی نوع N
وزن: 24.5 کیلوگرم
بسته حمل و نقل: بسته بندی پالت چوبی و کارتن
مشخصات: 1762 * 1134 * 30 میلی متر
علامت تجاری: جینکو سولار
مبدا: چین
| MECHANICAL DATA | |
|---|---|
| Cell Type | N-type Mono-crystalline |
| No. of Cells | 108(2*54) |
| Dimensions | 1762*1134*30 mm |
| Weight | 24.5 kg |
| Front Glass | 2.0mm, Anti-reflection Coating |
| Back Glass | 2.0mm, Heat Strengthened Glass |
| Frame | Anodized aluminium alloy |
| J-Box | IP68 rated |
| Protection Class | Class II |
| lEC Fire Type | Class C |
| Output Cables | 4.0 mm²(+): 400 mm, (-): 200 mm or Customized Length |
| ELECTRICAL DATE(STC) | ||||||
|---|---|---|---|---|---|---|
| Nominal Max. Power (Pmax) | 425w | 430w | 435w | 440w | 445w | 450w |
| Power Tolerance | 0- +3% | |||||
| Opt. Operating Voltage (Vmp) | 32.9 | 33.08 | 33.26 | 33.44 | 33.61 | 33.79 |
| Opt. Operating Current (Imp) | 12.92 | 13 | 13.08 | 13.16 | 13.24 | 13.32 |
| Open Circuit Voltage (Voc) | 39.23 | 39.43 | 39.63 | 39.83 | 40.03 | 40.23 |
| Short Circuit Current (Isc) | 13.77 | 13.84 | 13.91 | 13.98 | 14.05 | 14.12 |
| Module Efficiency | 21.27% | 21.52% | 21.77% | 22.02% | 22.27% | 22.52% |
